Socomec COUNTIS E23 80A Direct Connected 3 Phase Dual-Tariff Energy Meter with Modbus RS485 (4850-3050)

Name: Socomec COUNTIS E23 80A Direct Connected 3 Phase Dual-Tariff Energy Meter with Modbus RS485 (4850-3050)
Brand: Socomec
Price: 245.34 GBP
Availability: BackOrder

Socomec

Socomec COUNTIS E23 80A Direct Connected 3 Phase Dual-Tariff Energy Meter with Modbus RS485 (4850-3050)

Socomec

£204.45

£245.34 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

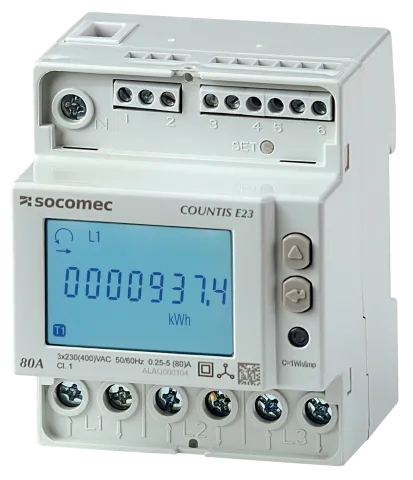

Socomec's COUNTIS E23 is a modular active electrical energy meter displaying the energy and power consumed (kWh and kW) directly on its back-lit LCD display. It is designed for three-phase load metering and is used for direct connections of up to 80 A.

Product Features:

Dimensions: 4 DIN Modules wide
Dual Tariff options
Pulse Output communication

Specification

Case

Type	modular
Number of modules	4
Dimensions (W x H x D)	72 x 90 x 64 mm
Case degree of protection	IP20
Front degree of protection	IP51
Display type	backlit LCD display
Rigid cable cross-section	1.5 to 35mm²
Flexible cable cross-section	1.5 to 35mm²
Weight	440g

Current Measurement

Type	three-phase direct 80 A
Input consumption	0.5 VA per phase
Startup current (Ist)	20 mA
Minimum current (Imin)	0.25 A
Transition current (Itr)	0.5A
Reference current (Iref)	5 A
Permanent overload (Imax)	80A
Intermittent overload	30 Imax over 10 ms

Voltage Measurement

Range of measurement	230 ... 400V +/- 20 %
Consumption (VA)	7.5 VA max (0,5 W) per phase E21/E22/E25/E26 3.5 VA max (1 W) per phase E23/E24/E27/E28
Permanent overload	290V phase-neutral / 500V phase-phase

Energy Accuracy

Active (according to IEC 62053-21)	Class 1
Active (according to EN 50470)	Class B
Reactive (according to IEC 62053-22)	Class 2

Power Supply

Self-supplied	Yes
Frequency	50 / 60 Hz

Output (pulsed)

Optoisolated type (IEC 62053-31)	250 VAC/DC - 100 mA (E21/E22) 27 VDC - 27 mA (E23 … E28)
Number	2 (E21/E22) 1 (E23 ... E28)
Fixed pulse weight	100 Wh
Pulse duration	50 ± 2 ms ON time 30 ± 2 ms OFF time

Operating temperature

Operating temperature	-20 to 55 °C
Storage temperature	-20 to 75 °C
Relative temperature	80%

Communication

Communication	E23/E24	E25/E26	E27/E28
Link	RS485	Wired	RJ45
Type	2 to 3 half duplex	2 half duplex	Full Duplex
Protocol	MODBUS RTU	M-BUS	MODBUS TCP, HTTP, NTP, DHCP
Baudrate	1200 … 115200 bauds	300 … 9600 bauds	10/100 Mbps
