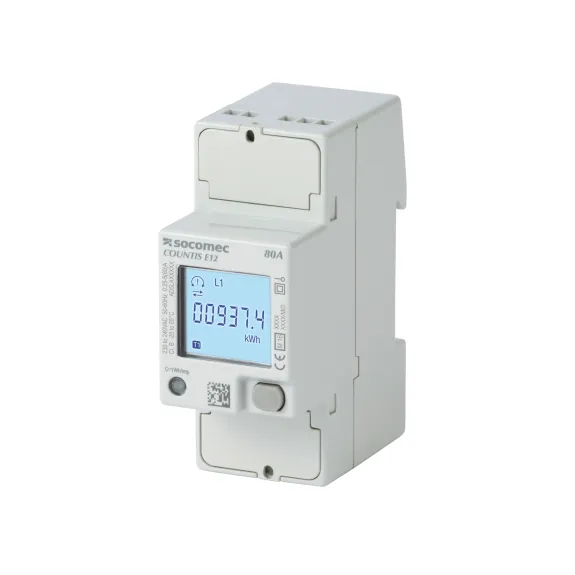

Socomec COUNTIS E12 80A Direct Connected Single Phase Dual-Tariff MID Energy Meter with Pulse Output (4850-3061)

Name: Socomec COUNTIS E12 80A Direct Connected Single Phase Dual-Tariff MID Energy Meter with Pulse Output (4850-3061)
Brand: Socomec
Price: 172.344 GBP
Availability: BackOrder

Socomec

Socomec COUNTIS E12 80A Direct Connected Single Phase Dual-Tariff MID Energy Meter with Pulse Output (4850-3061)

Socomec

£143.62

£172.34 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Socomec's COUNTIS E12 is a modular active electrical energy meter displaying the energy and power consumed (kWh and kW) directly on its back-lit LCD display. It is designed for single-phase load metering and is used for direct connections of up to 80 A.

Product Features:

Dimensions: 2 DIN Modules wide
Dual Tariff options
Pulse Output communication

Specification

Case

Type	modular
Number of modules	2
Dimensions (W x H x D)	36 x 90 x 64 mm
Case degree of protection	IP20
Front degree of protection	IP51
Display type	backlit LCD
Rigid cable cross-section	1.5 to 35mm²
Flexible cable cross-section	1.5 to 35mm²
Weight	215 g E13/E14/E17/E18 205 g E11/E12/E15/E16

Current Measurement

Type	single-phase direct 80 A
Input consumption	0.5 VA per phase
Startup current (Ist)	20 mA
Minimum current (Imin)	0.25 A
Transition current (Itr)	0.5A
Reference current (Iref)	5 A
Permanent overload (Imax)	80A
Intermittent overload	30 Imax over 10 ms

Voltage Measurement

Range of measurement	230 ... 400V +/- 20 %
Consumption (VA)	3.5 VA max E13/E14/E17/E18 7.5 VA max E11/E12/E15/E16
Permanent overload	290V phase-neutral

Energy Accuracy

Active (according to IEC 62053-21)	Class 1
Active (according to EN 50470)	Class B
Reactive (according to IEC 62053-22)	Class 2

Power Supply

Self-supplied	Yes
Frequency	50 / 60 Hz

Output (pulsed)

Optoisolated type (IEC 62053-31)	250 VAC/DC - 100 mA (E11/E12) 27 VDC - 27 mA (E13/E14/E15/E16)
Number	1
Fixed pulse weight	100 Wh
Pulse duration	50 ± 2 ms ON time 30 ± 2 ms OFF time

Operating temperature

Operating temperature	-20 to 55 °C
Storage temperature	-20 to 75 °C
Relative temperature	80%

Communication

Communication	E13/E14	E15/E16	E17/E18
Link	RS485	Wired	RJ45
Type	2 to 3 half duplex	2 half duplex	Full Duplex
Protocol	MODBUS RTU	M-BUS	MODBUS TCP, HTTP, NTP, DHCP
Baudrate	1200 … 115200 bauds	300 … 9600 bauds	10/100 Mbps
