Socomec COUNTIS E42 3 Phase Dual Tariff MID Energy Meter 5A CT Connected with Pulse Output (4850-3064)

Name: Socomec COUNTIS E42 3 Phase Dual Tariff MID Energy Meter 5A CT Connected with Pulse Output (4850-3064)
Brand: Socomec
Price: 284.772 GBP
Availability: BackOrder

Socomec

Manufacturer Part No: 48503009

Socomec COUNTIS E42 3 Phase Dual Tariff MID Energy Meter 5A CT Connected with Pulse Output (4850-3064)

Socomec

Manufacturer Part No: 48503009

£237.31

£284.77 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

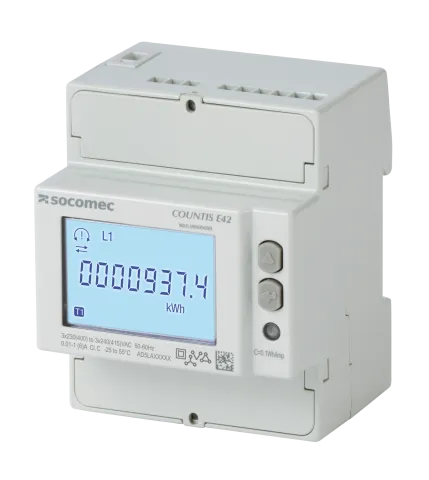

Socomec's COUNTIS E42 is a modular active and reactive electrical energy meter displaying the energies and active power consumed (kWh, kVArh and kW) directly on its back-lit LCD display. It is designed for three-phase load metering with connection via CT and is suitable for applications of up to 6000A.

Product Features:

Measurement accuracy: 1%
MID Certified
Pulse Output
Dual-tariff options

Specification

Case

Type	modular
Number of modules	4
Dimensions (W x H x D)	72 x 90 x 64 mm
Case degree of protection	IP20
Front degree of protection	IP51
Display type	8-digit backlit LCD
Rigid cable cross-section	1.5 to 6mm²
Flexible cable cross-section	1.5 to 6mm²
Weight	322g

Current Measurement

Type	three-phase on CT1 and 5A up to 12000 A
Input consumption	0.5 VA max. per phase
Startup current (Ist)	1 mA - Class C 2 mA - Class 1
Minimum current (Imin)	10 mA
Transition current (Itr)	50 mA
Reference current (Iref)	1 A
Permanent overload (Imax)	6 A
Intermittent overload	120 A for 0.5 s

Voltage Measurement

Range of measurement	230 ... 400V +/- 20 %
Consumption (VA)	7.5 VA max (0,5 W) per phase E41/E42/E45/E46 3.5 VA max (1 W) per phase E43/E44/E47/E48
Permanent overload	290 V phase-neutral / 500 V phase-phase

Energy Accuracy

Active (according to IEC 62053-21)	Class 1
Active (according to EN 50470)	Class B
Reactive (according to IEC 62053-22)	Class 2

Power Supply

Self-supplied	Yes
Frequency	50 / 60 Hz

Output (pulse)

Number	2 (E41/E42) 1 (E43 ... E48)
Type of Octocoupler	250 VAC/DC - 100 mA (E41/E42) 27 VDC - 27 mA (E43 ... E48)
Pulse weight	1 Wh ➱ CT = 1 ... 4 5 Wh ➱ CT = 5 ... 24 25 Wh ➱ CT = 25 ... 124 125 Wh ➱ CT = 125 ... 624 1000 Wh ➱ CT = 625 ... 3124 10000 Wh ➱ CT = 3125 ... 12000
Pulse duration	50 ± 2 ms ON time 30 ± 2 ms OFF time

Operating temperature

Operating temperature	-25 to 55 °C
Storage temperature	-25 to 75 °C
Relative temperature	80%

Communication

Communication	E43/E44	E45/E46	E47/E48
Link	RS485	Wired	RJ45
Type	2 to 3 half duplex	2 half duplex	Full Duplex
Protocol	MODBUS RTU	M-BUS	MODBUS TCP, HTTP, NTP, DHCP
Baudrate	1200 … 115200 bauds	300 … 9600 bauds	10/100 Mbps
