Socomec DIRIS A-10 Multi-Function Electricity Meter with Modbus RS485 (4825-0401)
A10
Socomec diris a10
Diris 791 b tel

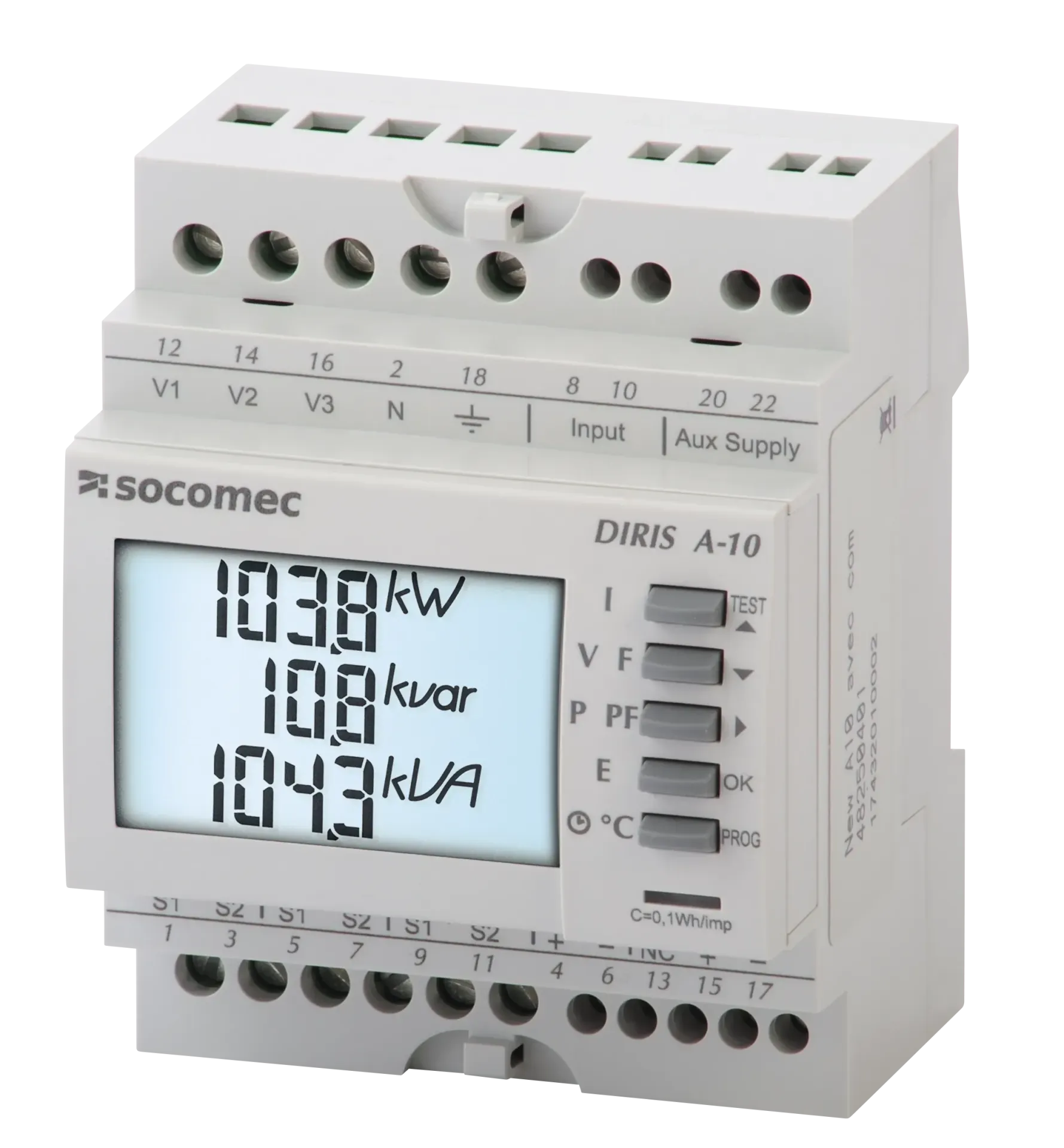

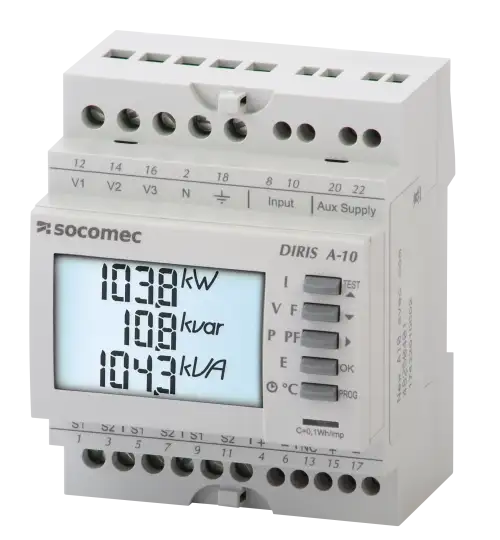

Socomec DIRIS A-10 Multi-Function Electricity Meter with Modbus RS485 (4825-0401)
£337.97
£405.56 inc. VAT
Product Description
Socomec's DIRIS A10 is a multi-function meter for measuring electrical values in low voltage networks in modular format. It allows all electrical parameters to be displayed and the measurement, energy metering and communication functions to be used. Modbus/Jbus output is available for this model through the RS485 port on the meter.
Specification
Case
Type | Modular |
Number of optional modules | 4 |
Dimensions (W x H x D) | 72 x 90 x 64 mm |
Case protection index | 30 |
Front protection rating | 52 |
Display type | LCD |
Weight | 215g |
Voltage and other connection section | 4 mm² |
Other connection section | 2.5 mm² |
Current measurement on insulated inputs (TRMS)
CT primary | 9 999 A |
CT secondary | 5 A |
Measurement range | 0 ... 11 kA |
Input consumption | 0,6 VA |
Measurement updating period | 1 s |
Accuracy | 0.2 % |
Sustained overload | 6 A |
Intermittent overload | 1890 A max for 10 ms |
Voltage measurement
Direct measurement between phases | 50 … 500 VAC |
Direct measurement between phase and neutral | 28 … 289 VAC |
Input consumption | ≤ 0,1 VA |
Measurement updating period | 1 s |
Accuracy | 0.2 % |
Sustained overload | 800 VAC |
Power measurement
Measurement updating period | 1 s |
Accuracy | 0.5 % |
Power factor measurement
Measurement updating period | 1 s |
Accuracy | 0.5 % |
Frequency measurement
Measurement range | 45 … 65 Hz |
Measurement updating period | 1 s |
Accuracy | 0.1 % |
Energy accuracy
Active (according to IEC 62053-22) | class 0.5 S |
Reactive (according to IEC 62053-23) | class 2 |
Auxiliary power supply
Alternating voltage | 200 … 277 VAC |
AC tolerance | ± 15 % |
Frequency | 50 / 60 Hz |
Consumption | < 3 VA |
Outputs (pulse)
Number | 1 |
Type | 100 VDC - 0.5 A - 10 VA |
Max. number of operations | ≤ 10(8) |
Communication
Link | RS485 |
Type | 2 … 3 half duplex wires |
Protocol | JBUS/MODBUS® in RTU mode |
JBUS/MODBUS® speed | 1400 … 38400 bauds |
Operating temperature
Operating temperature | - 10 … + 55°C °C |
Storage temperature | - 20 … + 70°C °C |
Relative humidity | 85% |
Downloads
Ask an expert about the
Socomec DIRIS A-10 Multi-Function Electricity Meter with Modbus RS485 (4825-0401)
