Socomec DIRIS A41 Multi-Function 3 Phase 4 CT Connected Electricity Meter (4825-0404)

Name: Socomec DIRIS A41 Multi-Function 3 Phase 4 CT Connected Electricity Meter (4825-0404)
Brand: Socomec
Price: 741.996 GBP
Availability: BackOrder

Socomec

Socomec DIRIS A41 Multi-Function 3 Phase 4 CT Connected Electricity Meter (4825-0404)

Socomec

£618.33

£742.00 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

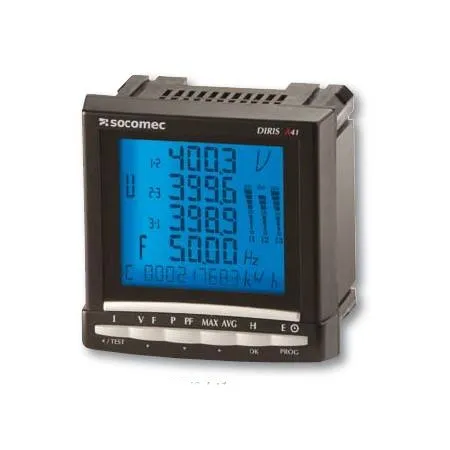

Socomec's DIRIS A41 is a three-phase 5A CT-connected modular multi-function meter that is suitable for all industrial and commercial electrical installations. The meter has a large backlit LCD display where the following parameters can be measured; kW, kvar, kVA, Voltage, Current, Power Factor and Harmonics.

Installation is easy with a compact DIN 96 panel-mount casing and plug-in terminal blocks. Optional plug-in modules are available for Pulse output, Analog output, Ethernet, and Modbus communications.

Specification

Case

Type	Panel mounting
Dimensions (W x H x D)	96 x 96 x 60 mm
Case degree of protection	IP30
Front degree of protection	IP52
Display type	Backlit LCD display
Terminal blocks type	Fixed or plug-in
Weight	400g
Voltage and other terminals connection cross-section	0,2 … 2.5 mm²
Current connection cross-section	0.5 … 6 mm²

Current measurement on insulated inputs (TRMS)

Via CT primary	9 999 A
Via CT secondary	1 or 5 A
Measurement range	0 ... 11 kA
Input consumption	≤ 0,1 VA
Measurement updating period	1 s
Accuracy	0.2 %
Sustained overload	6 A
Intermittent overload	10 In for 1 s

Voltage measurement

Direct measurement between phases	50 … 700 VAC
Direct measurement between phase and neutral	28 … 404 VAC
VT primary measurement	500,000 VAC
VT secondary measurement	60, 100, 110, 173, 190 VAC
Frequency	50 / 60 Hz
Input consumption	≤ 0,1 VA
Measurement updating period	1 s
Accuracy	0.2 %
Permanent overload	800 VAC

Current - voltage measurement

Limitation for 1A CT	10,000,000
Limitation for 5A CT	10,000,000

Power measurement

Measurement updating period	1 s
Accuracy	0.5 %

Power factor measurement

Measurement updating period	1 s
Accuracy	0.5 %

Frequency measurement

Measurement range	45 … 65 Hz
Measurement updating period	1 s
Accuracy	0.1 %

Energy accuracy

Active (according to IEC 62053-22)	class 0.5 S
Reactive (according to IEC 62053-23)	class 2

Auxiliary power supply

Alternating voltage	100 … 400 VAC
AC tolerance	± 10 %
Direct current	120 … 350 VDC / 12 … 48 VDC
DC tolerance	± 20 % / - 6 … + 20 %
Frequency	50 / 60 Hz
Power consumption	< 10 VA
