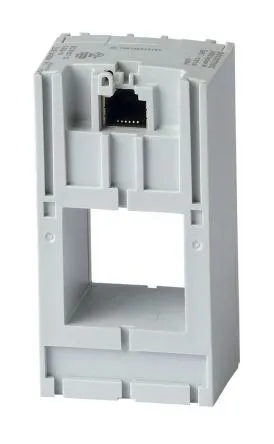

Socomec TE18 Series Solid Current Transformer 25-63A (4829-0500 / 4829-0501)
£20.58
£24.70 inc. VAT
Product Description
Socomec's TE smart current sensors measure the load currents of an electrical system and send the data to meters and measurement hubs via an RJ12 plug-and-play output. Thanks to a wide measurement range, TE current sensors cover the full current range of 5 to 2000 A, with 7 references.
TE solid current sensors can be connected to DIRIS Digiware and DIRIS B-30 via a rapid RJ12 connection. Numerous accessories are available to aid the installation of sensors in any type of cabinet.
Product Features:
- Plug & Play RJ12 connection to prevent wiring errors
- Accuracy: CL0.5
- Compact design
Specification
| Nominal current range In (A) | 5 … 20 |
|---|---|
| Actual coverage range (A) | 0.1 … 24 |
| Max. current (A) | 24 |
| Weight (g) | 24 |
| Max. voltage (phase/neutral) | 300 V |
| Rated withstand voltage | 3 kV |
| Frequency | 50/60 Hz |
| Intermittent overload | 10 x In over 1 sec |
| Measurement category | CAT III |
| Protection degree | IP30 / IK06 |
| Operating temperature | -10 … +70°C |
| Storage temperature | -25 … +85°C |
| Relative humidity | 95% RH non-condensing |
| Altitude | < 2000m |
| Connection | Socomec RJ12 cable |
