Socomec DIRIS A60 Multi-Function 3 Phase Electricity Meter DIN 96 (4825-0207)

Name: Socomec DIRIS A60 Multi-Function 3 Phase Electricity Meter DIN 96 (4825-0207)
Brand: Socomec
Price: 1478.988 GBP
Availability: BackOrder

Socomec

Manufacturer Part No: 48250207

Socomec DIRIS A60 Multi-Function 3 Phase Electricity Meter DIN 96 (4825-0207)

Socomec

Manufacturer Part No: 48250207

£1,232.49

£1,478.99 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

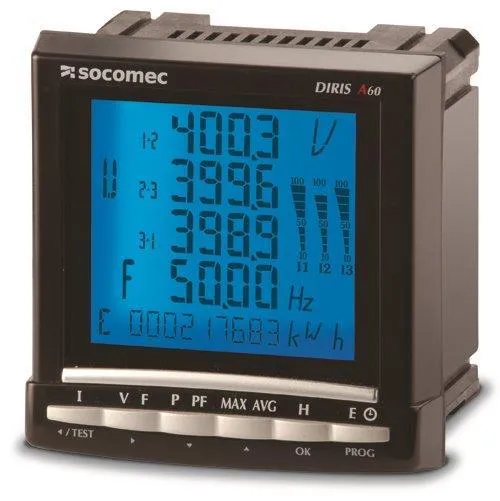

Socomec's DIRIS A60 is a panel mounted multi-function meter. Its functions are very similar to that of the DIRIS A40 with the option of enhanced data logging functions, recording curves for power quality.

The meter directly displays a number of multi-measurement and metering values including:+/- kWh, +/- kVARh, kVAh, I, U, V, F, P, Q, S, PF etc.

Product Features:

Compliant with IEC 61557-12
Conformity to standard EN 50160
Optional plug-in modules are available for Pulse Outputs, Analog output, Ethernet and Modbus communications.

Specification

Case

Type	Panel mounting
Dimensions (W x H x D)	96 x 96 x 95 mm
Case degree of protection	IP30
Front degree of protection	IP52
Display type	Backlit LCD display
Terminal blocks type	Fixed or plug-in
Weight	450g
Voltage and other terminals connection cross-section	0,2 … 2.5 mm²
Current connection cross-section	0.5 … 6 mm²

Current measurement on insulated inputs (TRMS)

Via CT primary	9 999 A
Via CT secondary	1 or 5 A
Measurement range	0 ... 11 kA
Input consumption	≤ 0,1 VA
Measurement updating period	1 s
Accuracy	0.2 %
Sustained overload	6 A
Intermittent overload	10 In for 1 s

Voltage measurement

Direct measurement between phases	50 … 700 VAC
Direct measurement between phase and neutral	28 … 404 VAC
VT primary measurement	500,000 VAC
VT secondary measurement	60, 100, 110, 173, 190 VAC
Frequency	50 / 60 Hz
Input consumption	≤ 0,1 VA
Measurement updating period	1 s
Accuracy	0.2 %
Permanent overload	800 VAC

Current - voltage measurement

Limitation for 1A CT	10,000,000
Limitation for 5A CT	10,000,000

Power measurement

Measurement updating period	1 s
Accuracy	0.5 %

Power factor measurement

Measurement updating period	1 s
Accuracy	0.5 %

Frequency measurement

Measurement range	45 … 65 Hz
Measurement updating period	1 s
Accuracy	0.1 %

Energy accuracy

Active (according to IEC 62053-22)	class 0.5 S
Reactive (according to IEC 62053-23)	class 2

Auxiliary power supply

Alternating voltage	100 … 400 VAC
AC tolerance	± 10 %
Direct current	120 … 350 VDC
DC tolerance	± 20 %
Frequency	50 / 60 Hz
Power consumption	< 10 VA
