Wago COP3/COP5 HV/LV Enclosure (New Code 60539184) (50079591)

Name: Wago COP3/COP5 HV/LV Enclosure (New Code 60539184) (50079591)
Brand: Wago
Price: 432 GBP
Availability: InStock

Wago

Wago COP3/COP5 HV/LV Enclosure (New Code 60539184) (50079591)

Wago

Sorry, this product is not currently available. Please get in touch for information on alternative products.

Description
Specification
Ask a Question
Help & Advice

Product Description

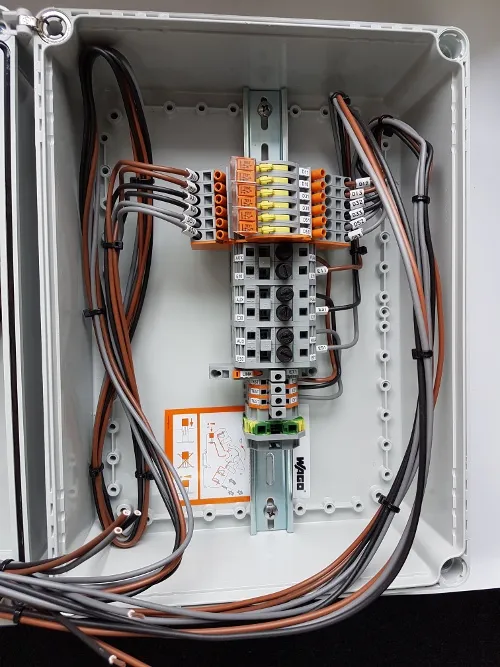

The Wago COP3 HV/LV Enclosure has pre-wired three-phase three-wire terminals that are suitable for a variety of different Main and Check Meters. Surface mount meters are fitted to the front of the unit, and the wires are fed through the front of the enclosure.

Replacment below:
COP5 Meter enclosures

Specification

Voltage	400V (Potential Difference)
Dimensions (W x H x D)	25.5 x 35 x 10cm
Cable Dimensions	Voltage cables (2M), CT cables (1M)

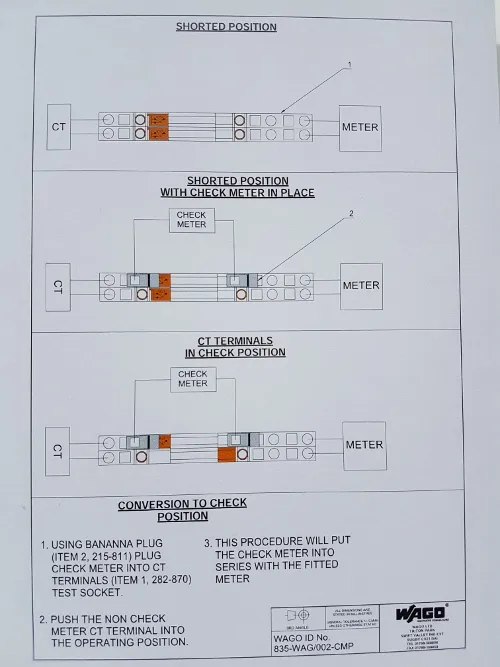

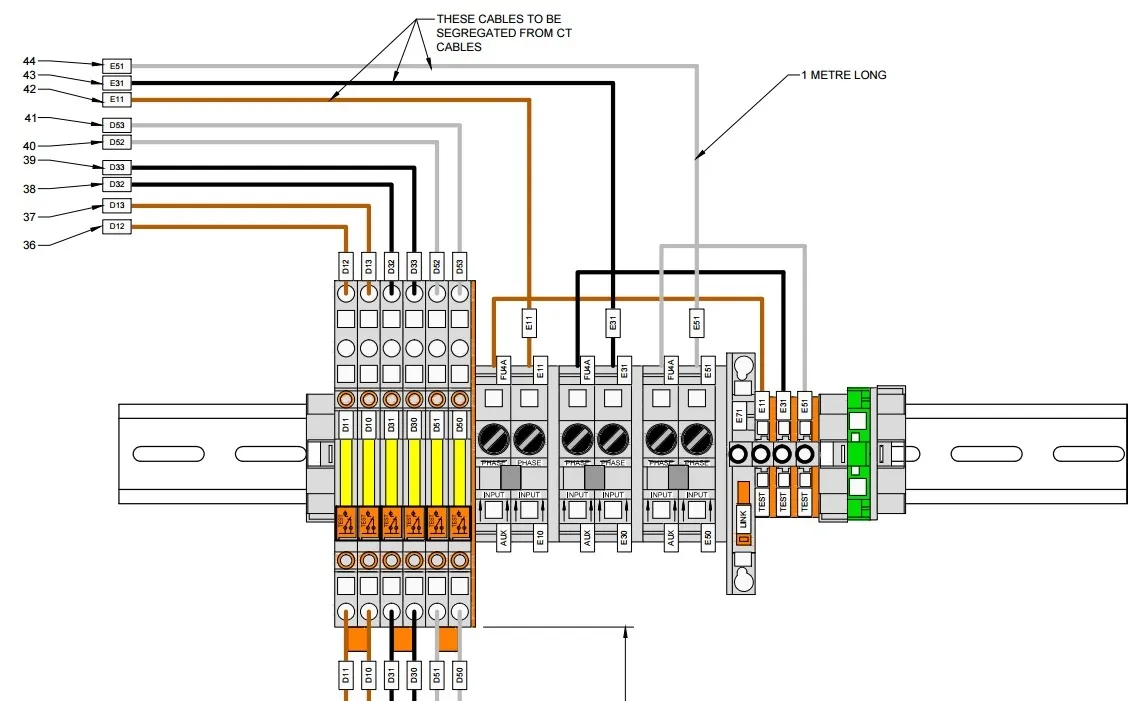

Wiring	3 Phase 3 Wire (Labelled and comparable to the drawing available in the 'downloads' section below)
Safety	Fuse links included along with plastic cover switches to test Voltage supply. Possible to short-circuit through the Voltage and Phase terminals simply.
